JX-370 / 460 / 560
Double Station High-Speed Hot Stamping Die Cutting Machine
Die Cutting & ConvertingFoil and cut in one pass
Two stations: hot foil stamping and die cutting on the same servo-controlled line. Rewinding and unwinding to Ø650 mm and 2000 metres.
Choose your size

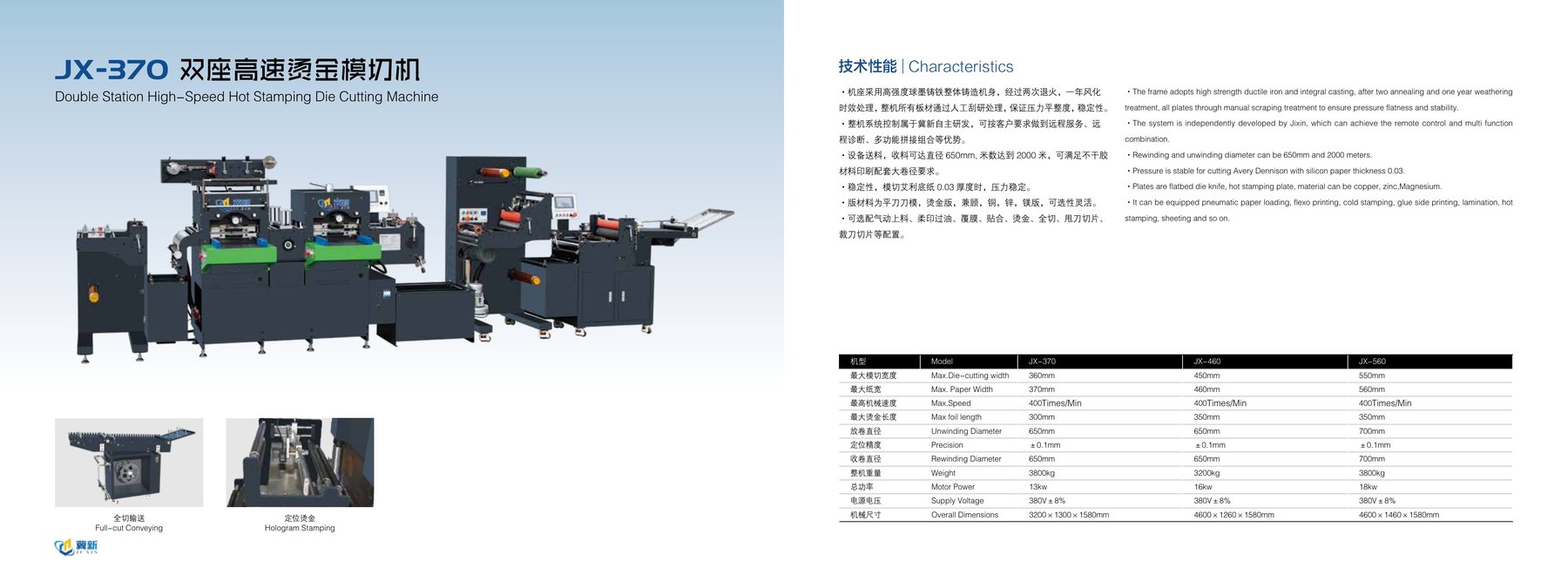

FROM THE PRINTED BROCHURE
One platform, built in several web widths. Pick a size for its full data plate, or set the sizes side by side the way the brochure prints them.
Showing JX-370
- Max die-cutting width
- 360 mm
- Max paper width
- 370 mm
- Max speed
- 400 times/min
- Max foil length
- 300 mm
- Unwinding diameter
- 650 mm
- Rewinding diameter
- 650 mm
- Precision
- ±0.1 mm
- Motor power
- 13 kW
- Supply voltage
- 380 V ± 8%
- Overall dimensions
- 3200 × 1300 × 1580 mm
- Weight
- 3800 kg
What makes it run
SERVICE REGISTER
Rewinding and unwinding diameter can be 650 mm and 2000 metres.

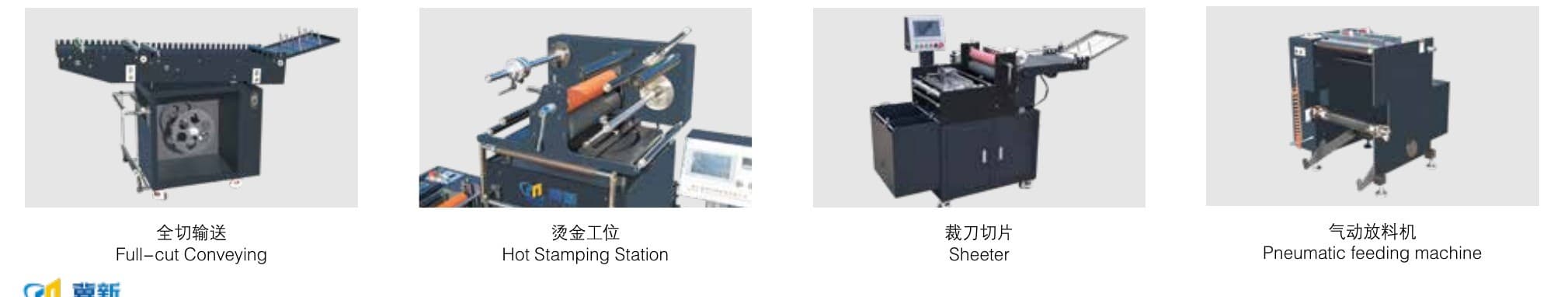

Accessories for the JX hot-stamping die-cutting line
Configure it for your floor
OPTIONS
Options
- Full-out conveying
- Hologram stamping
- Pneumatic feeding machine
- Shearer
What it runs
APPLICATIONS
Applications
- Security labels
- Hologram authentication
- Premium brand decoration
Machines that work alongside it
THE CHAIN
Want to see the JX-370 / 460 / 560 running?
Our Sanand experience centre runs live Wanjie machines. Bring your substrate and your artwork, and watch your own job come off the roll.
