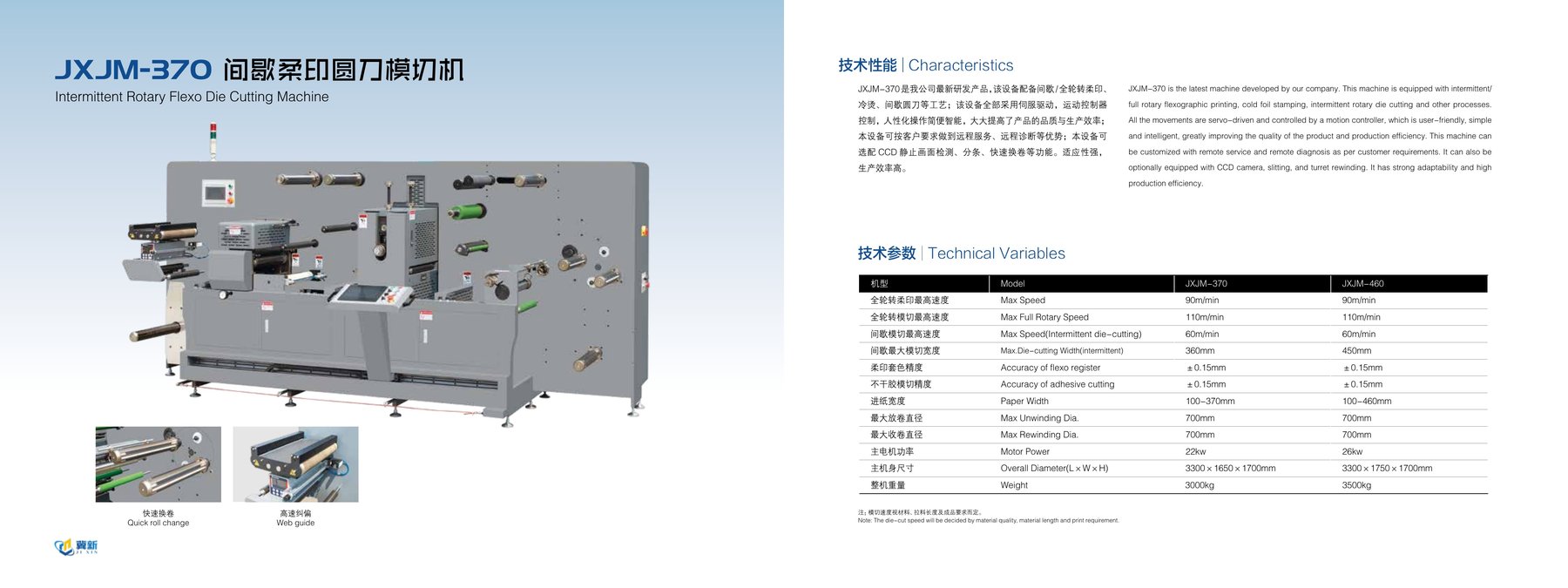

JXJM-370 / 460
Intermittent Rotary Flexo Die Cutting Machine
The latest machine developed by Wanjie: intermittent/full rotary flexographic printing, cold foil stamping, intermittent rotary die cutting and other processes on one servo-driven, motion-controller-managed frame.
Choose your size
One platform, built in several web widths. Pick a size for its full data plate, or set the sizes side by side the way the brochure prints them.
Showing JXJM-370
- Max speed
- 90 m/min
- Max full rotary speed
- 110 m/min
- Max speed (intermittent die cutting)
- 60 m/min
- Max die-cutting width (intermittent)
- 360 mm
- Accuracy of flexo register
- ±0.15 mm
- Accuracy of adhesive cutting
- ±0.15 mm
- Paper width
- 100–370 mm
- Max unwinding diameter
- 700 mm
- Max rewinding diameter
- 700 mm
- Motor power
- 22 kW
- Overall diameter (L×W×H)
- 3300 × 1650 × 1700 mm
- Weight
- 3000 kg
What makes it run
All the movements are servo-driven and controlled by a motion controller, which is user-friendly, simple and intelligent — greatly improving the quality of the product and production efficiency.

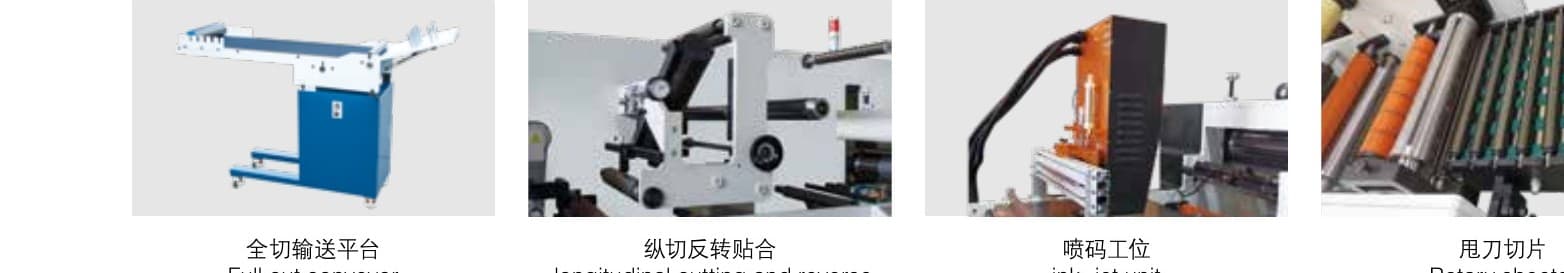

Die-cutting options: conveyor, laminating and inkjet stations
Configure it for your floor
Options
- CCD camera
- Slitting
- Turret rewinding
What it runs
Applications
- Combination printing and converting
- Cold foil decorated labels
- High-adaptability job shops
Machines that work alongside it
Want to see the JXJM-370 / 460 running?
Our Sanand experience centre runs live Wanjie machines. Bring your substrate and your artwork, and watch your own job come off the roll.
