JXJM-370 / 460
Intermittent Flatbed Die Cutting Machine
Die Cutting & ConvertingFull servo control, flat-die accuracy
Flat-die cutting with full servo control and an intermittent swing-rod structure motion controller. Stable running, convenient operation.
Choose your size

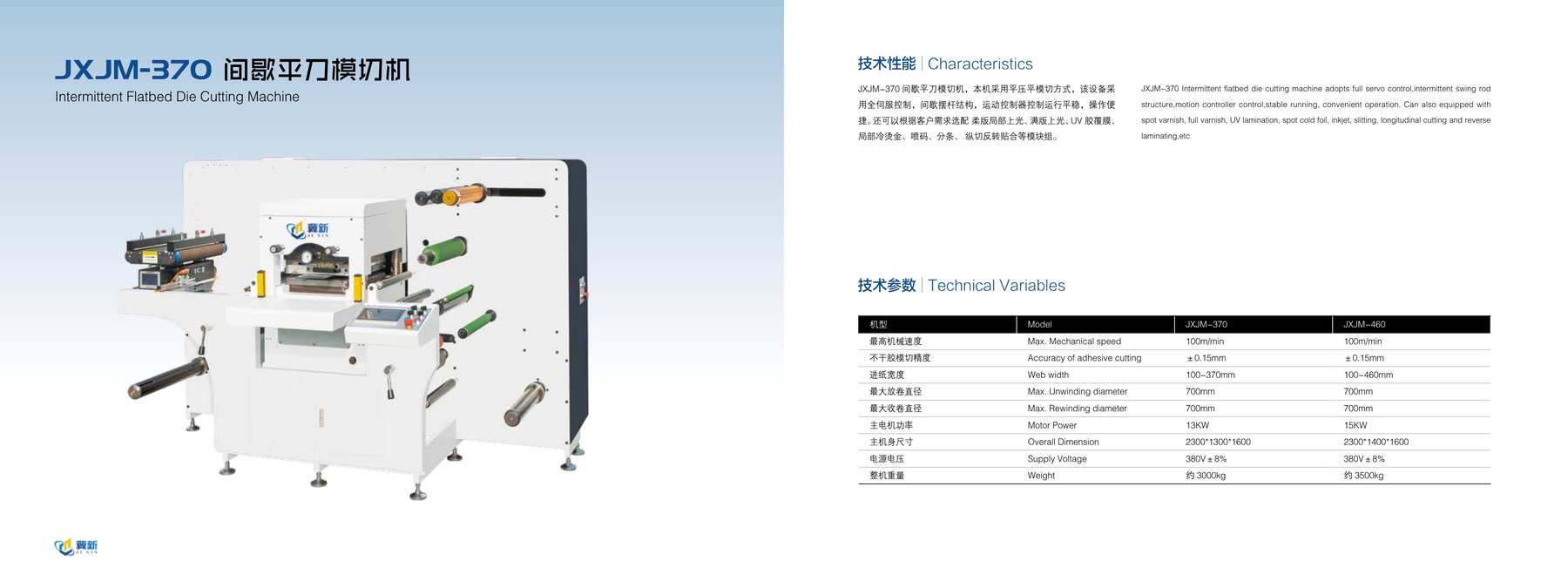

FROM THE PRINTED BROCHURE
One platform, built in several web widths. Pick a size for its full data plate, or set the sizes side by side the way the brochure prints them.
Showing JXJM-370
- Max mechanical speed
- 100 m/min
- Accuracy of adhesive cutting
- ±0.15 mm
- Web width
- 100–370 mm
- Max unwinding diameter
- 700 mm
- Max rewinding diameter
- 700 mm
- Motor power
- 13 kW
- Overall dimension
- 2300 × 1300 × 1600 mm
- Supply voltage
- 380 V ± 8%
- Weight
- ≈3000 kg
What makes it run
SERVICE REGISTER
Adopts full servo control with an intermittent swing-rod structure motion controller — stable running and convenient operation.
Configure it for your floor
OPTIONS
Options
- Spot / full varnish
- UV lamination
- Spot cold foil
- Inkjet
- Slitting
- Longitudinal cutting and reverse laminating
What it runs
APPLICATIONS
Applications
- Precision short-run die cutting
- Thin material labels
- Pharma and electronics labels
Machines that work alongside it
THE CHAIN
Want to see the JXJM-370 / 460 running?
Our Sanand experience centre runs live Wanjie machines. Bring your substrate and your artwork, and watch your own job come off the roll.
