Name: WJJM-350A Intermittent Rotary Label Die-Cutting Machine
Brand: Wanjie

Intermittent Rotary Label Die-Cutting Machine

Die Cutting & ConvertingMulti-function converting platform

Module-design die cutter that adopts rotary die-cutting mode and can realise in-mould label, copper printing paper label full cutting, and adhesive paper intermittent cutting — and switch between the two ways.

Enquire about the WJJM-350A

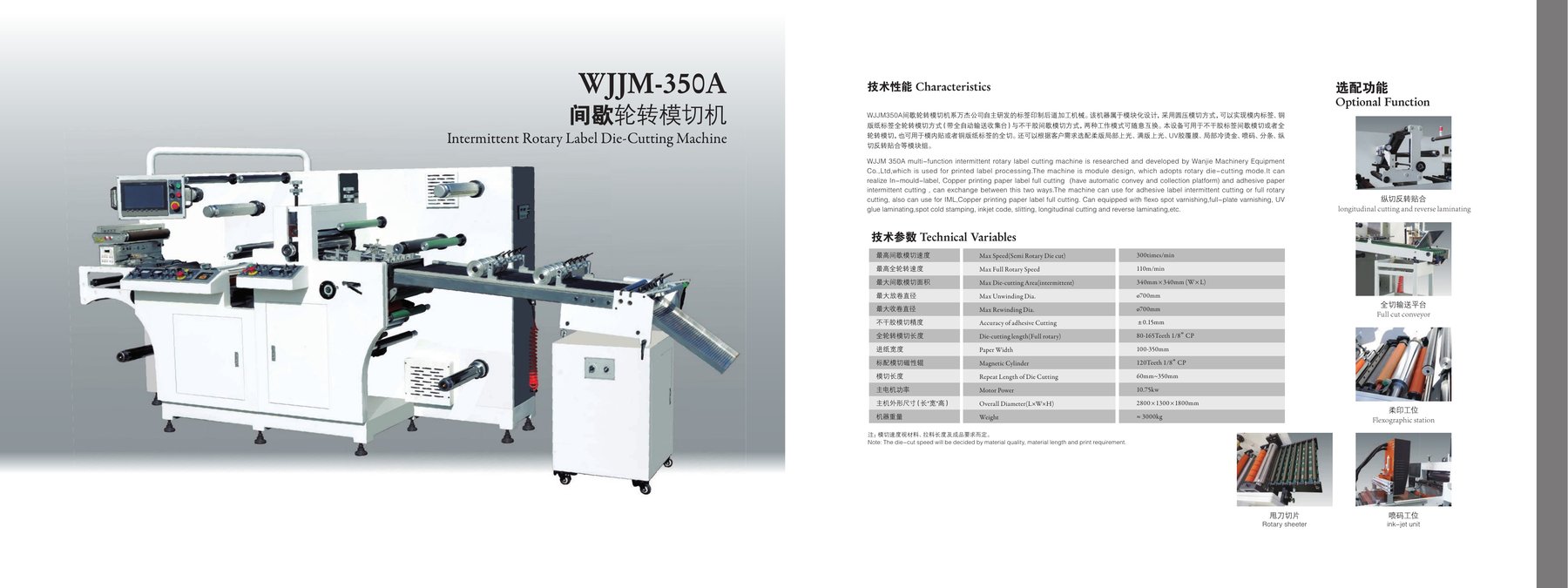

View this machine in the printed brochure

WJJM-350A — Intermittent Rotary Label Die-Cutting Machine

Watch it run

ON FILM · YUTIAN PLANT

Footage shows the WJJM-450 — the same intermittent rotary die-cutting platform in its 450 mm width — including the servo snow-ball matrix and rewinder.

Specifications

FROM THE PRINTED BROCHURE

Transcribed from the printed Wanjie brochure. Fields marked on request depend on configuration — ask us.

Max speed (semi rotary die cut): 300 times/min
Max full rotary speed: 110 m/min
Max die-cutting area (intermittent): 340 × 340 mm (W × L)
Max unwinding diameter: Ø700 mm
Max rewinding diameter: Ø700 mm
Accuracy of adhesive cutting: ±0.15 mm
Die-cutting length (full rotary): 80–165 Teeth 1/8" CP
Paper width: 100–370 mm
Magnetic cylinder: 120 Teeth 1/8" CP
Repeat length of die cutting: 60–350 mm
Motor power: 10.7 kW
Overall dimensions (L×W×H): 2800 × 1300 × 1800 mm
Machine weight: ≈3000 kg

For the Indian floor

The most versatile single converting machine in the range — often bought alongside an offset press.

Wanjie India

What makes it run

SERVICE REGISTER

Module design adopting rotary die-cutting mode. Can realise in-mould label and copper printing paper label full cutting (with automatic conveyor and collection platform) and adhesive paper intermittent cutting — and exchange between the two ways.
