JXJM-370 / 460
Intermittent Rotary Die Cutting Machine
A module-design rotary die cutter for printed label processing, able to do in-mould label and copper printing paper label full cutting as well as adhesive paper intermittent cutting.
Choose your size

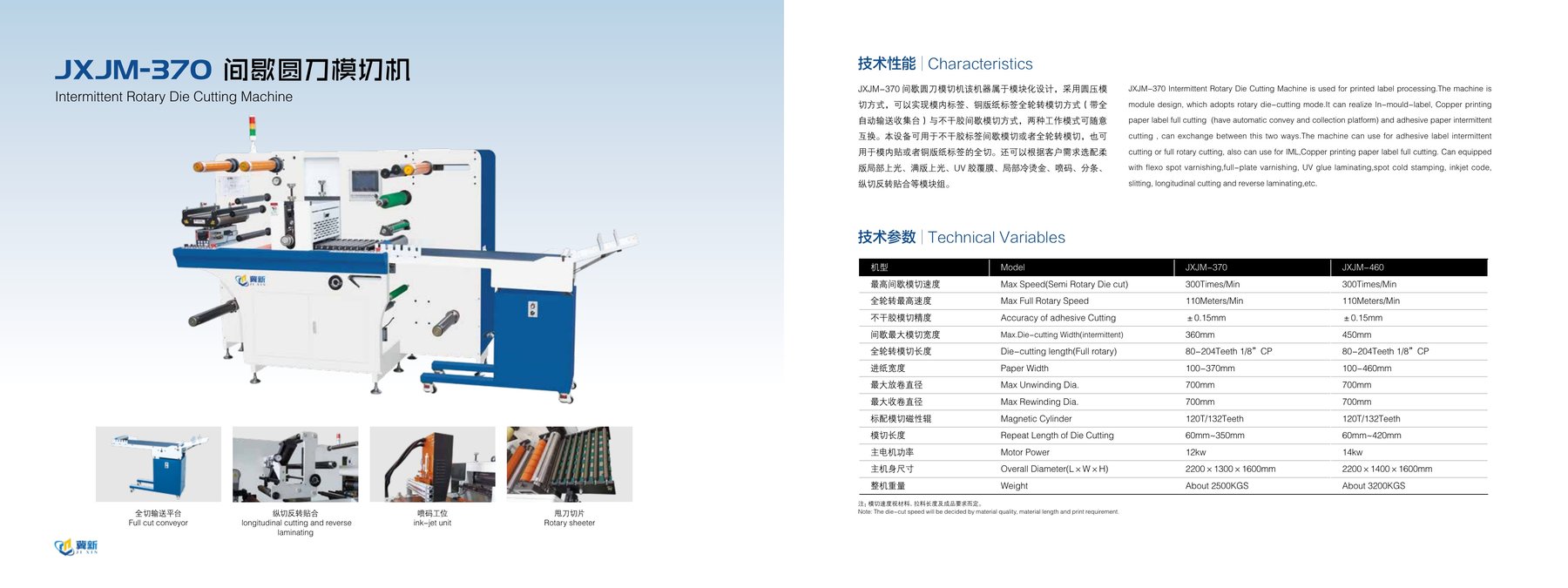

One platform, built in several web widths. Pick a size for its full data plate, or set the sizes side by side the way the brochure prints them.
Showing JXJM-370
- Max speed (semi rotary die cut)
- 300 times/min
- Max full rotary speed
- 110 m/min
- Accuracy of adhesive cutting
- ±0.15 mm
- Die-cutting length (full rotary)
- 80–204 Teeth 1/8" CP
- Max die-cutting width (intermittent)
- 360 mm
- Paper width
- 100–370 mm
- Max unwinding diameter
- 700 mm
- Max rewinding diameter
- 700 mm
- Magnetic cylinder
- 120 T / 132 Teeth
- Repeat length of die cutting
- 60–350 mm
- Motor power
- 12 kW
- Overall diameter (L×W×H)
- 2200 × 1300 × 1600 mm
- Weight
- ≈2500 kg
What makes it run
Module design which adopts rotary die-cutting mode. Can realise in-mould label and copper printing paper label full cutting (with automatic conveyor and collection platform) and adhesive paper intermittent cutting, exchanging between the two ways.
Die-cutting options: conveyor, laminating and inkjet stations
Configure it for your floor
Options
- Full cut conveyor
- Longitudinal cutting and reverse laminating
- Ink-jet unit
- Rotary shearer
What it runs
Applications
- Printed label processing
- In-mould labels
- Adhesive label converting
Machines that work alongside it
Want to see the JXJM-370 / 460 running?
Our Sanand experience centre runs live Wanjie machines. Bring your substrate and your artwork, and watch your own job come off the roll.
