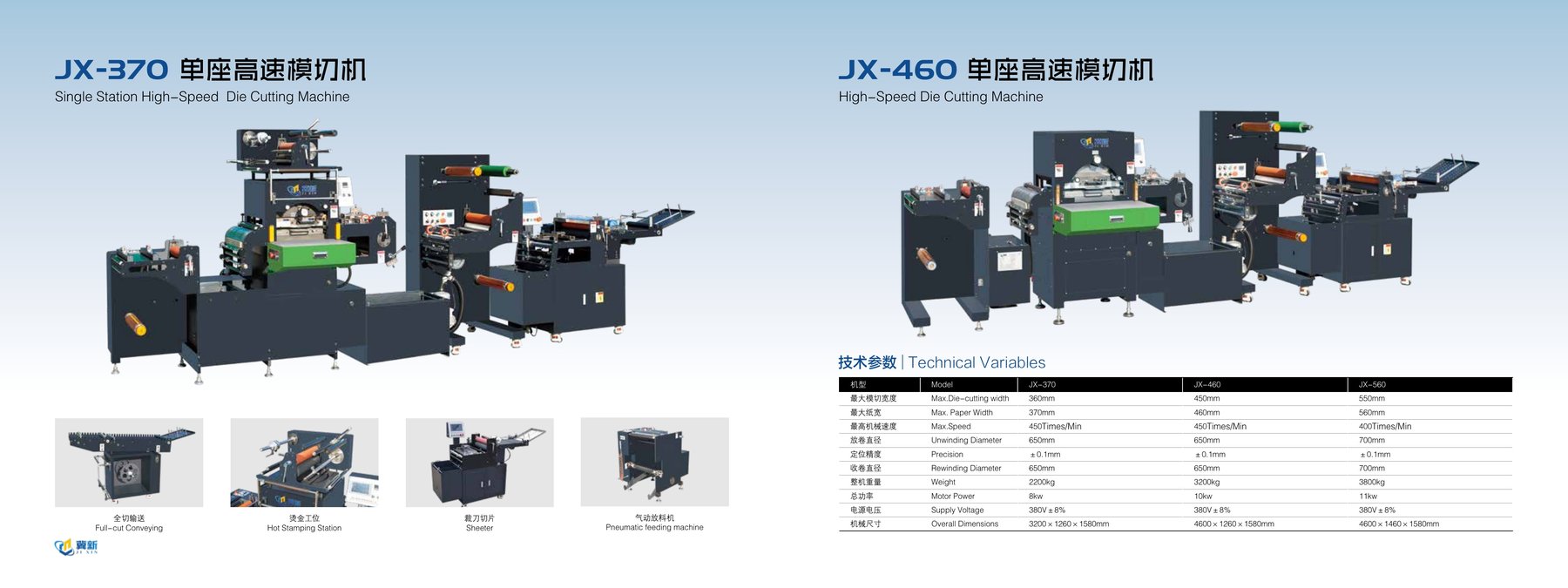

JX-370 / 460 / 560
Single Station High-Speed Die Cutting Machine
High-strength ductile iron integral cast frame, twice annealed and weathered for a year. Every plate is hand-scraped for pressure flatness and stability.
Choose your size
One platform, built in several web widths. Pick a size for its full data plate, or set the sizes side by side the way the brochure prints them.
Showing JX-370
- Max die-cutting width
- 360 mm
- Max paper width
- 370 mm
- Max speed
- 450 times/min
- Unwinding diameter
- 650 mm
- Rewinding diameter
- 650 mm
- Precision
- ±0.1 mm
- Motor power
- 8 kW
- Supply voltage
- 380 V ± 8%
- Overall dimensions
- 3200 × 1260 × 1580 mm
- Weight
- 2200 kg
What makes it run
The frame adopts high-strength ductile iron and integral casting, after two annealings and one year weathering treatment. All plates go through manual scraping treatment to ensure pressure flatness and stability.
Accessories for the JX die-cutting line
Configure it for your floor
Options
- Pneumatic paper loading
- Flexo printing
- Cold stamping
- Glue side printing
- Lamination
- Hot stamping
- Shearing
What it runs
Applications
- High-volume adhesive label die cutting
- Thin liner materials
- Contract converting
Machines that work alongside it
Want to see the JX-370 / 460 / 560 running?
Our Sanand experience centre runs live Wanjie machines. Bring your substrate and your artwork, and watch your own job come off the roll.
