WJMQ-350D / 450D
High-Speed Die-Cutting Machine
Die Cutting & ConvertingServo flat-bed, sticker and cardboard
400 times/min flat-bed die cutter with servo drive, ultrasonic web guide and independent servo unwind and rewind.
Watch it run
ON FILM · YUTIAN PLANT
Choose your size

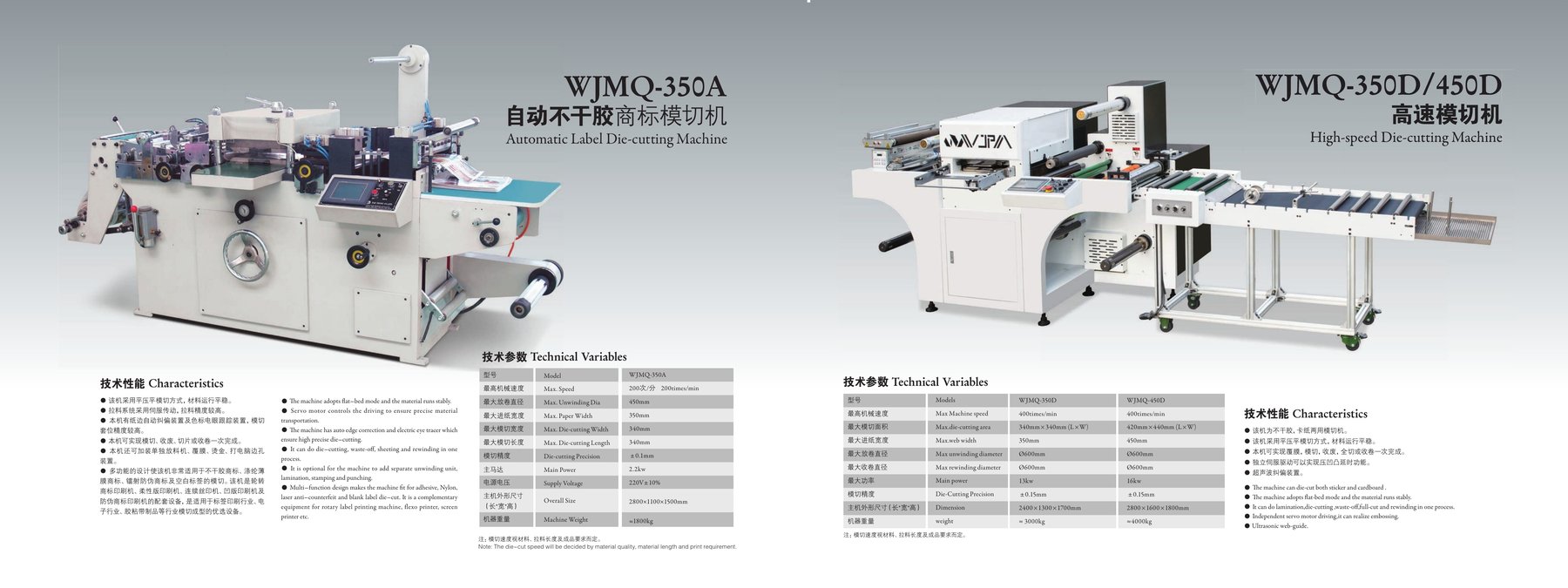

FROM THE PRINTED BROCHURE
One platform, built in several web widths. Pick a size for its full data plate, or set the sizes side by side the way the brochure prints them.
Showing WJMQ-350D
- Max machine speed
- 400 times/min
- Max die-cutting area (L×W)
- 340 × 340 mm
- Max web width
- 350 mm
- Max unwinding diameter
- Ø600 mm
- Max rewinding diameter
- Ø600 mm
- Main power
- 13 kW
- Die-cutting precision
- ±0.15 mm
- Dimension
- 2400 × 1300 × 1700 mm
- Weight
- ≈3000 kg
What makes it run
SERVICE REGISTER
The machine can die-cut both sticker and cardboard.
Configure it for your floor
OPTIONS
Options
- Lamination unit
- Full cut conveyor
- Waste rewind
What it runs
APPLICATIONS
Applications
- High-volume label converting
- Cardboard and tag work
